Remote Power
Panels

"Our RPPs are like a Swiss army knife for your project, packed with a punch while offering unrivaled versatility."

MAX POLES
168
MAX AMPERAGE
800A
COMPLIANCE
UL 508A
Contact an Expert Product Guide
Voltz RPP
Operational Protocol

Powering Your Projects,
Empowering Your Success

Rapid Deployment

Industry-leading lead times through synchronized supply chain management and standardized Raptor engineering protocols.

Mission Critical

Built for 100% uptime environments. Every unit undergoes rigorous 5-point diagnostic verification before dispatch.

Custom Engineered

Flexible configurations including custom pole counts, monitoring integrations, and specialized enclosure finishes.

Lifetime Support

Direct access to Voltz engineering teams for lifecycle technical assistance and site-specific integration consulting.

System Diagnostics // v4.2

Technical
Readout

Verified electrical parameters and mechanical tolerances for mission-critical deployment. All data points synchronized with Raptor Engineering Protocol.
voltz_rpp_spec_matrix.exe // status: verified

01 Ratings

Protocol_RATINGS
Input/Output 3-Phase, 3-Wire + Ground or 4-Wire + Ground
NOMINAL
Voltage 208V, 400V, 415V, 480V @ 60 Hz
NOMINAL
Main Bus 225A, 400A, 600A, 800A Options
NOMINAL

02 Panel Boards

Protocol_PANELS

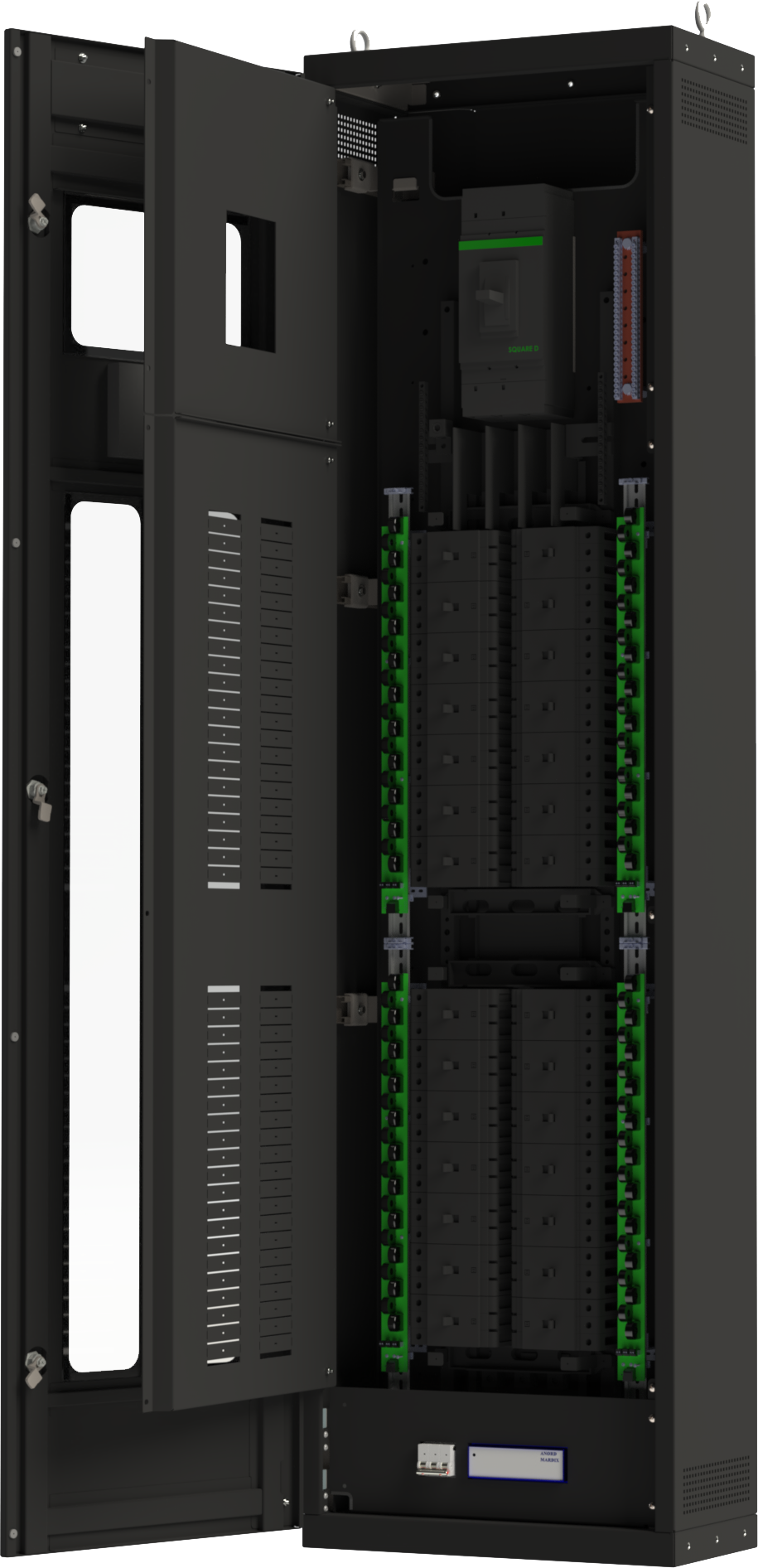

Hardware Brands SquareD / Schneider Electric (NQ and NF)
NOMINAL
Pole Config 42 or 84 Poles (Configurable up to 168)
NOMINAL
Branch Breakers 1, 2, or 3-Pole Options up to 100A Bolt-on
NOMINAL

03 Monitoring

Protocol_MONITOR
HMI Interface Integrated 7" High-Definition Color Touch Screen
NOMINAL
Data Accuracy Revenue-Grade True RMS with Waveform Capture
NOMINAL
Communication Modbus RTU/TCP, SNMP v3, and Web Server
NOMINAL

04 Mount & Ops

Protocol_MOUNT
Installation Floor Standing or Wall Mount Configurations
NOMINAL
Env Range 0°C to 40°C Operating | Up to 6,600ft Altitude
NOMINAL
Service Access Front-only Access Required for All Maintenance
NOMINAL
Revision: 10.2025
Node: RPP-BASE-01
SYSTEM_READY
CERTIFIED
Regulatory Protocol

Compliance & Standards

UL 508A & CSA

Every Voltz RPP is ETL listed to UL 508A and CSA standards, ensuring maximum safety and regulatory compliance for industrial control panels.

CERT_UL_508A

ISO 9001:2015

Our manufacturing processes are ISO 9001:2015 certified, guaranteeing consistent quality and continuous improvement in every unit we build.

QUAL_ISO_9001

Factory Testing

100% factory testing for polarity, continuity, and insulation resistance. We verify every circuit before it leaves our floor.

TEST_FACTORY_100
Modular Deployment

Flexible Layouts

Maximize floor space with adaptable installation. Deploy as single units or synchronize in high-density configurations.

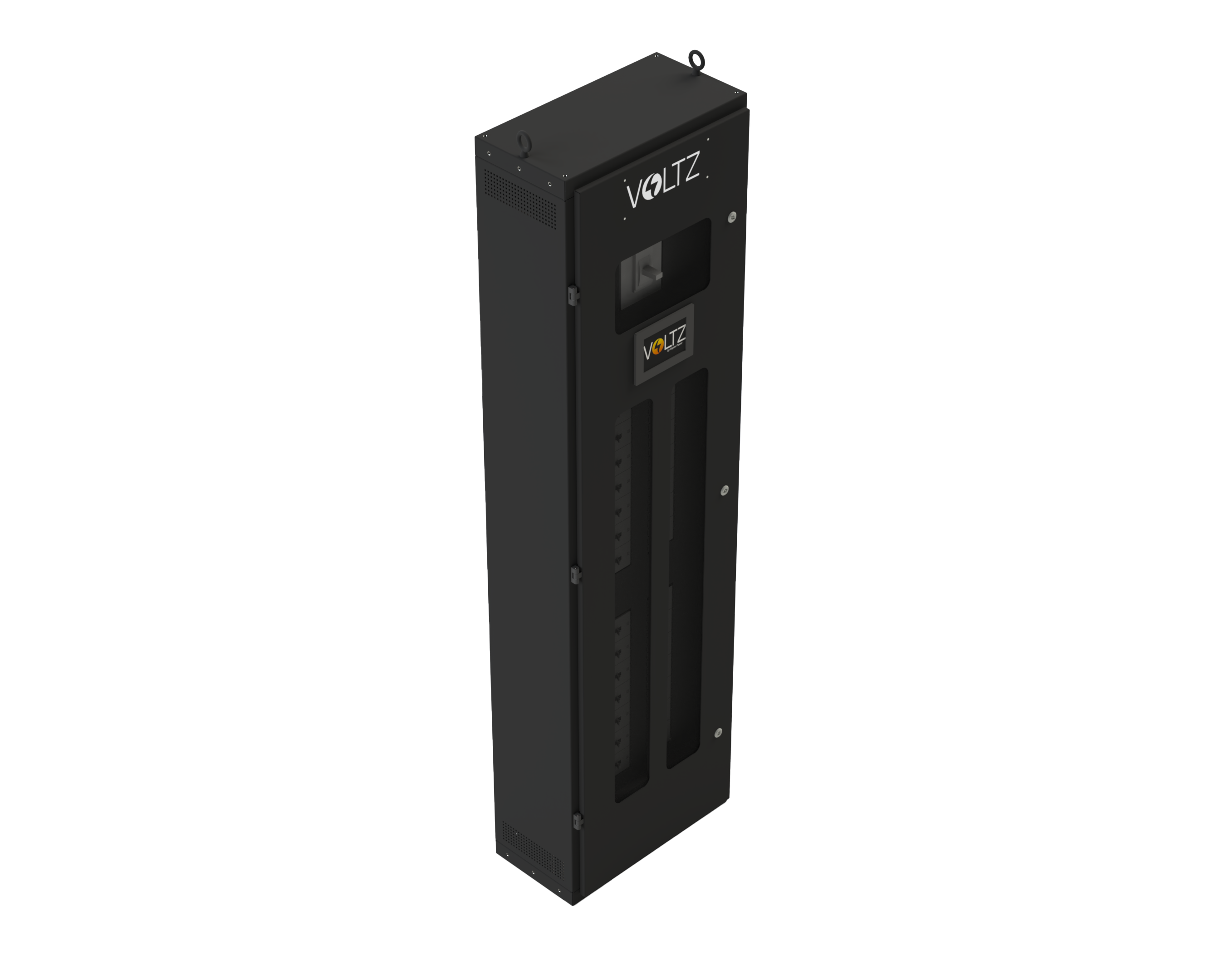

Single Unit
Single Unit

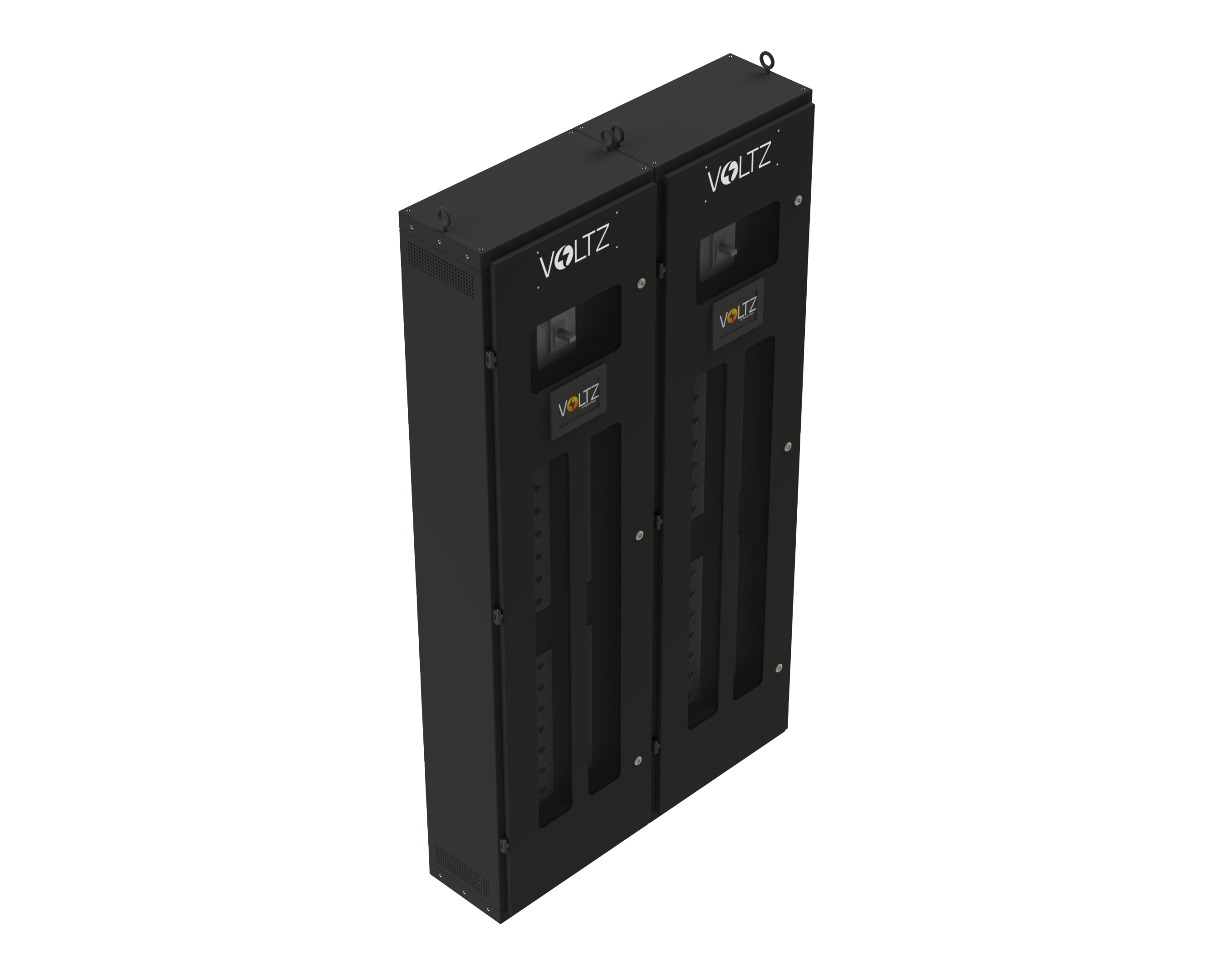

Side-by-Side
Side-by-Side

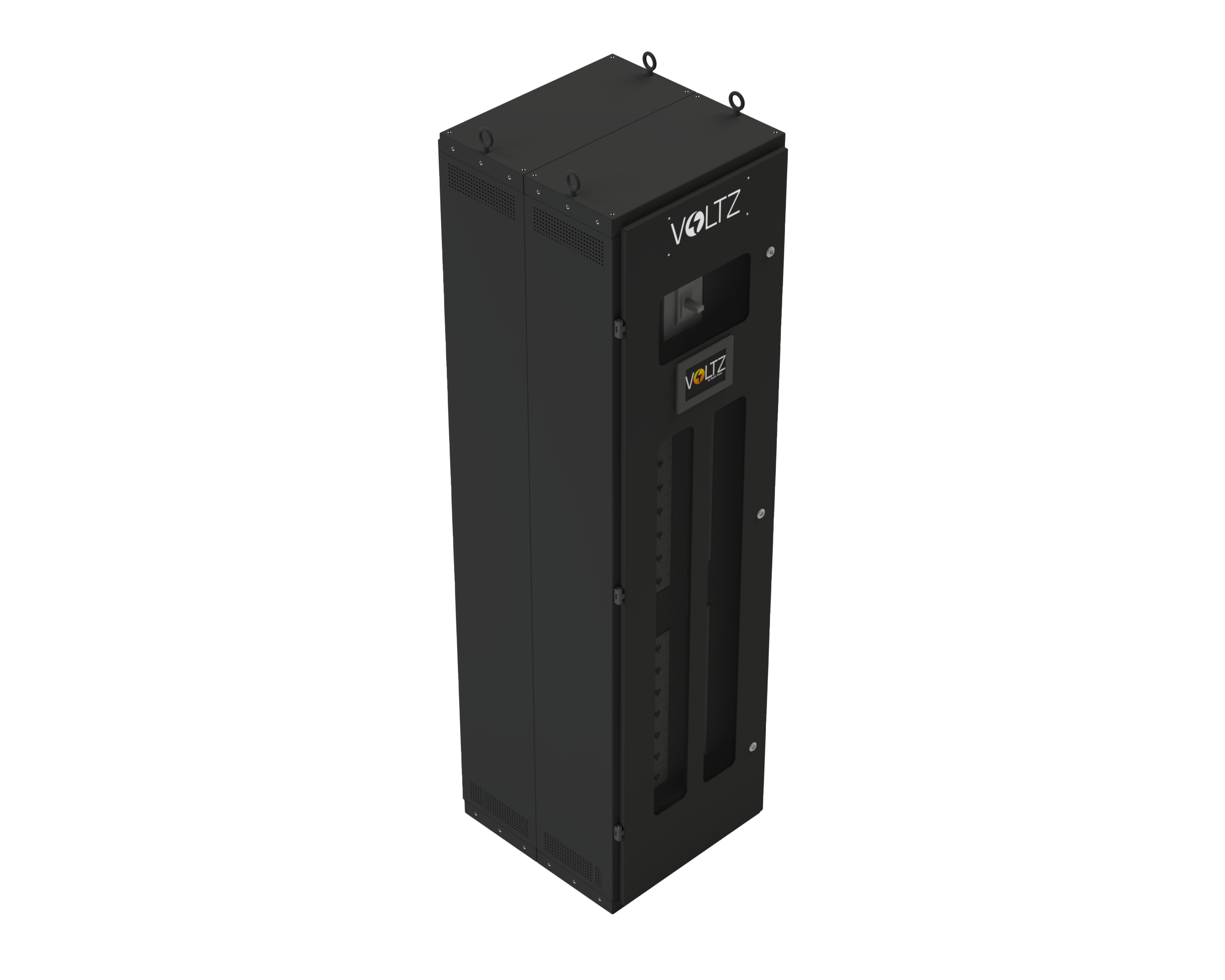

Back-to-Back
Back-to-Back

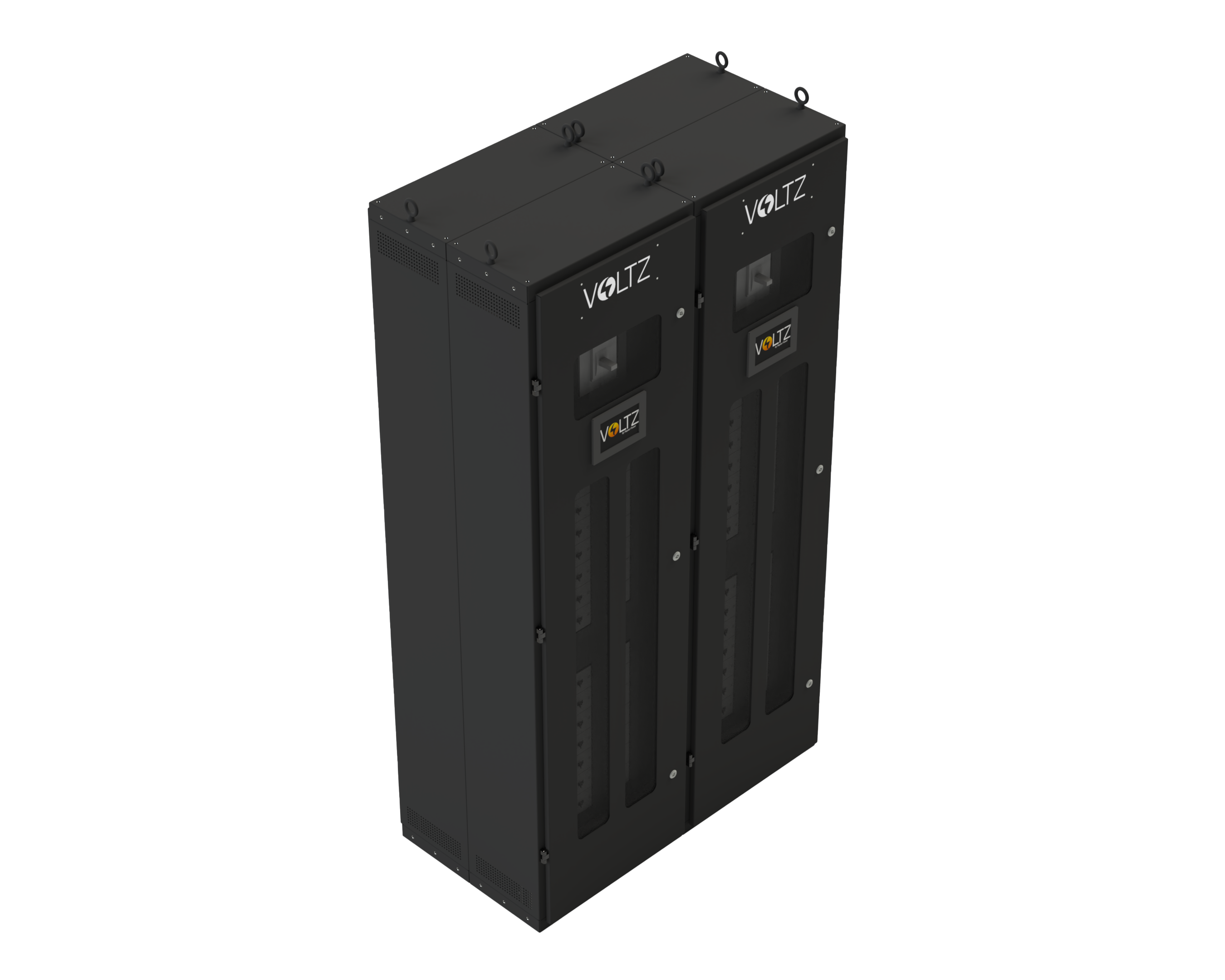

Quad Combination
Quad Combination
Direct Inquiry Channel // Engineering

Technical
Advisory

Provide your system specifications. Our team will perform a technical feasibility review and contact you to discuss the most efficient configuration for your power infrastructure.
